IAM

IAM

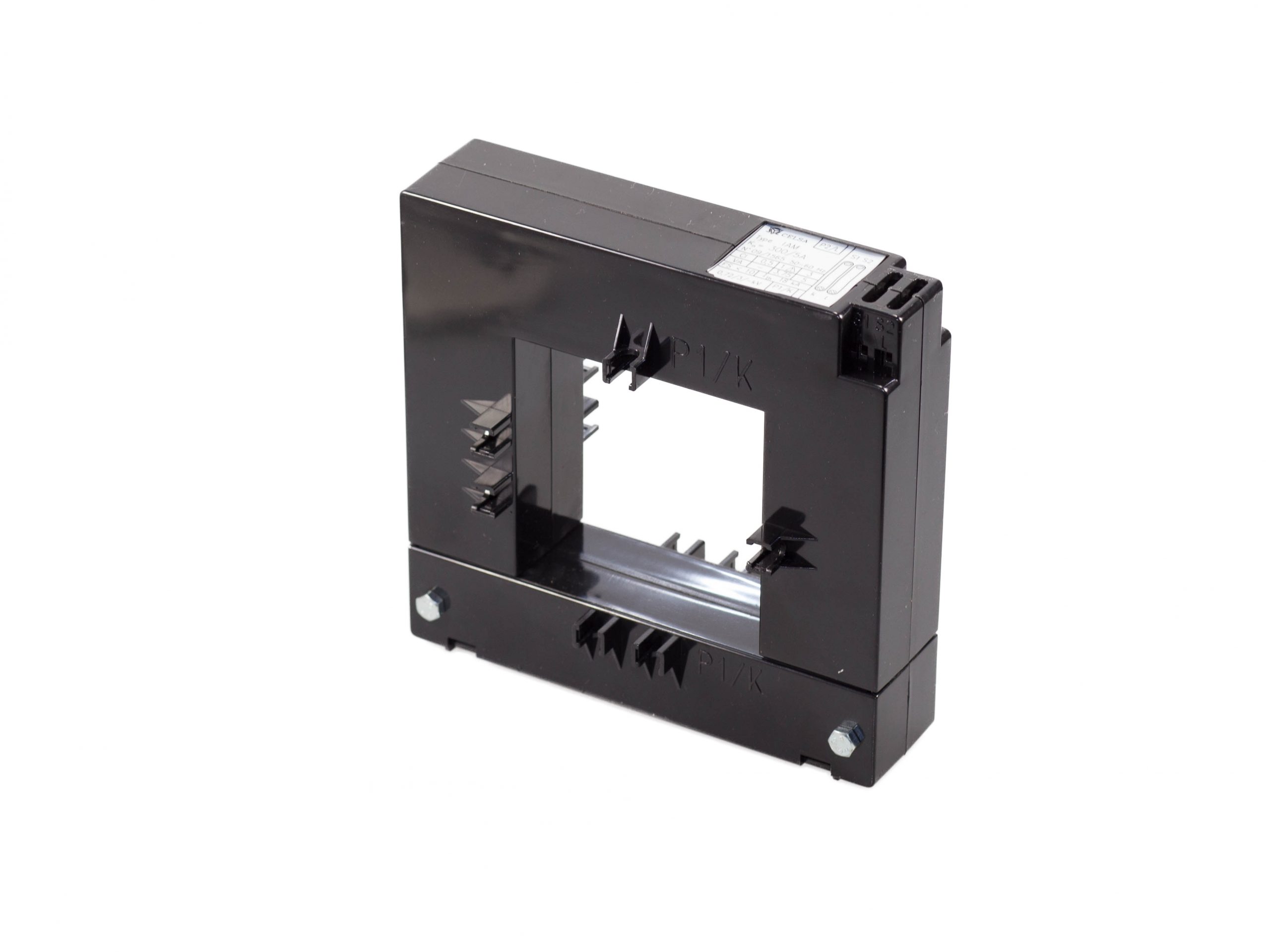

SPLIT CORE CURRENT TRANSFORMER

Dimensions 159 x 154.5 x 39 mm
Primary bar 4 x 80 x 10 mm
Round conductor ⌀ 80 mm
Range 5A 100...1500 A
Range 1A 100...1500 A
TECHNICAL DATA
DOWNLOAD
Dimensions 159 x 154.5 x 39 mm
Primary bar 4 x 80 x 10 mm
Round conductor ⌀ 80 mm
Range 5A 100...1500 A
Range 1A 100...1500 A
