IAG

IAG

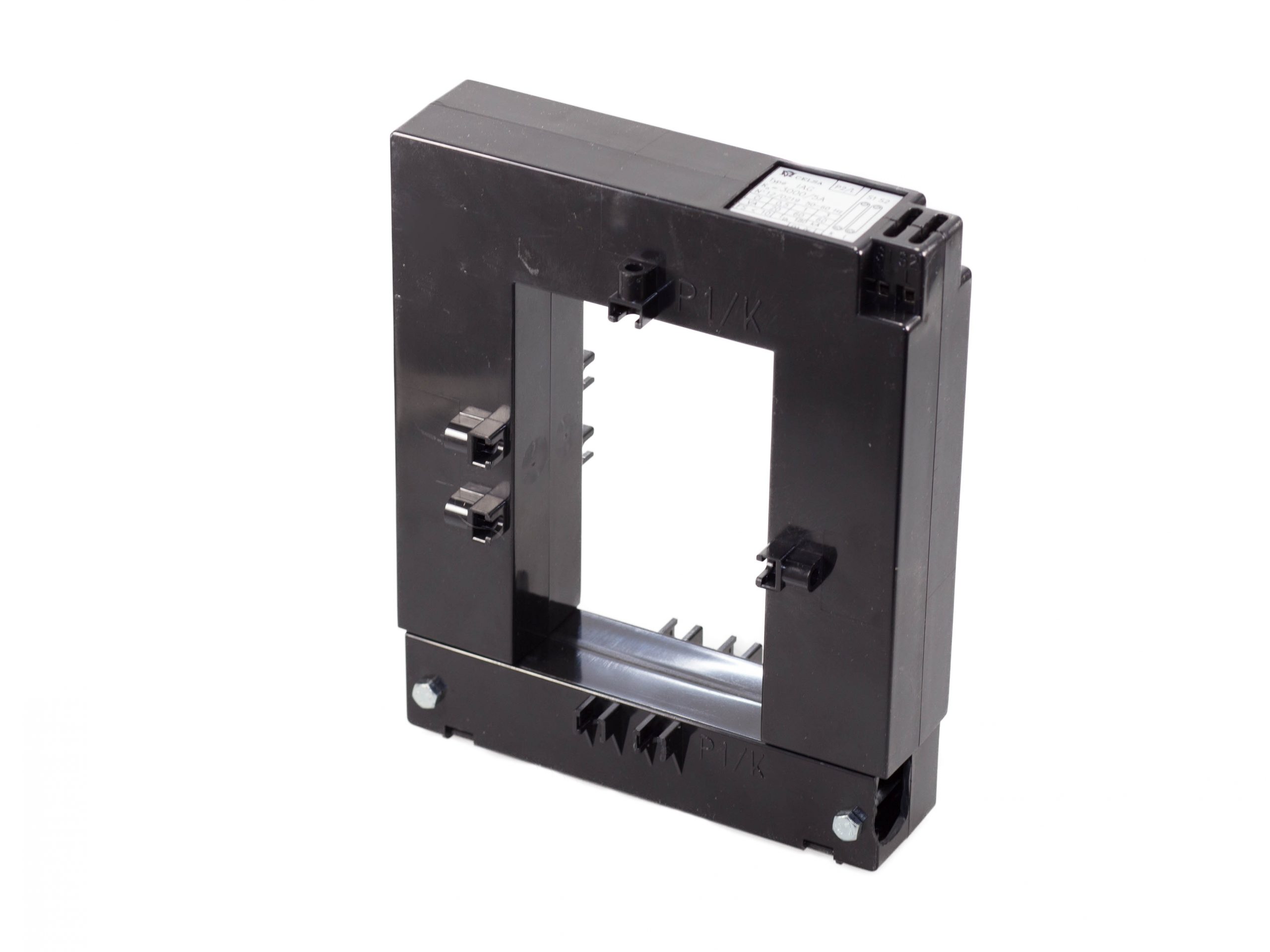

SPLIT CORE CURRENT TRANSFORMER

Dimensions 163 x 199.5 x 41 mm
Primary bar 4 x 125 x 10 mm
Round conductor ⌀ 80 mm
Range 5A 500...3000 A
Range 1A 500...3000 A
TECHNICAL DATA
DOWNLOAD
Dimensions 163 x 199.5 x 41 mm
Primary bar 4 x 125 x 10 mm
Round conductor ⌀ 80 mm
Range 5A 500...3000 A
Range 1A 500...3000 A
